29er Gnar Trail SR
$839.00

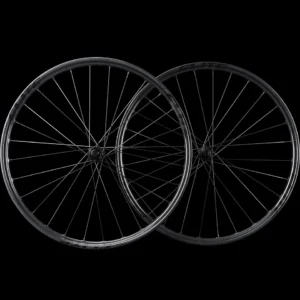

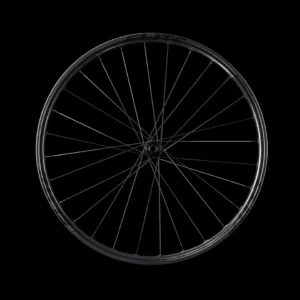

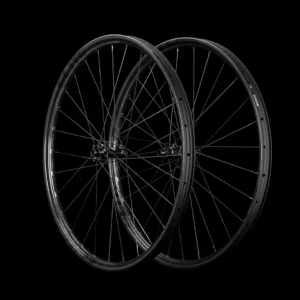

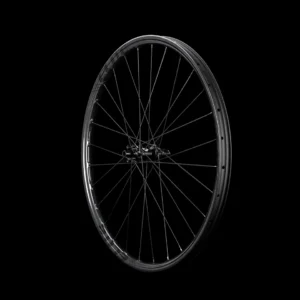

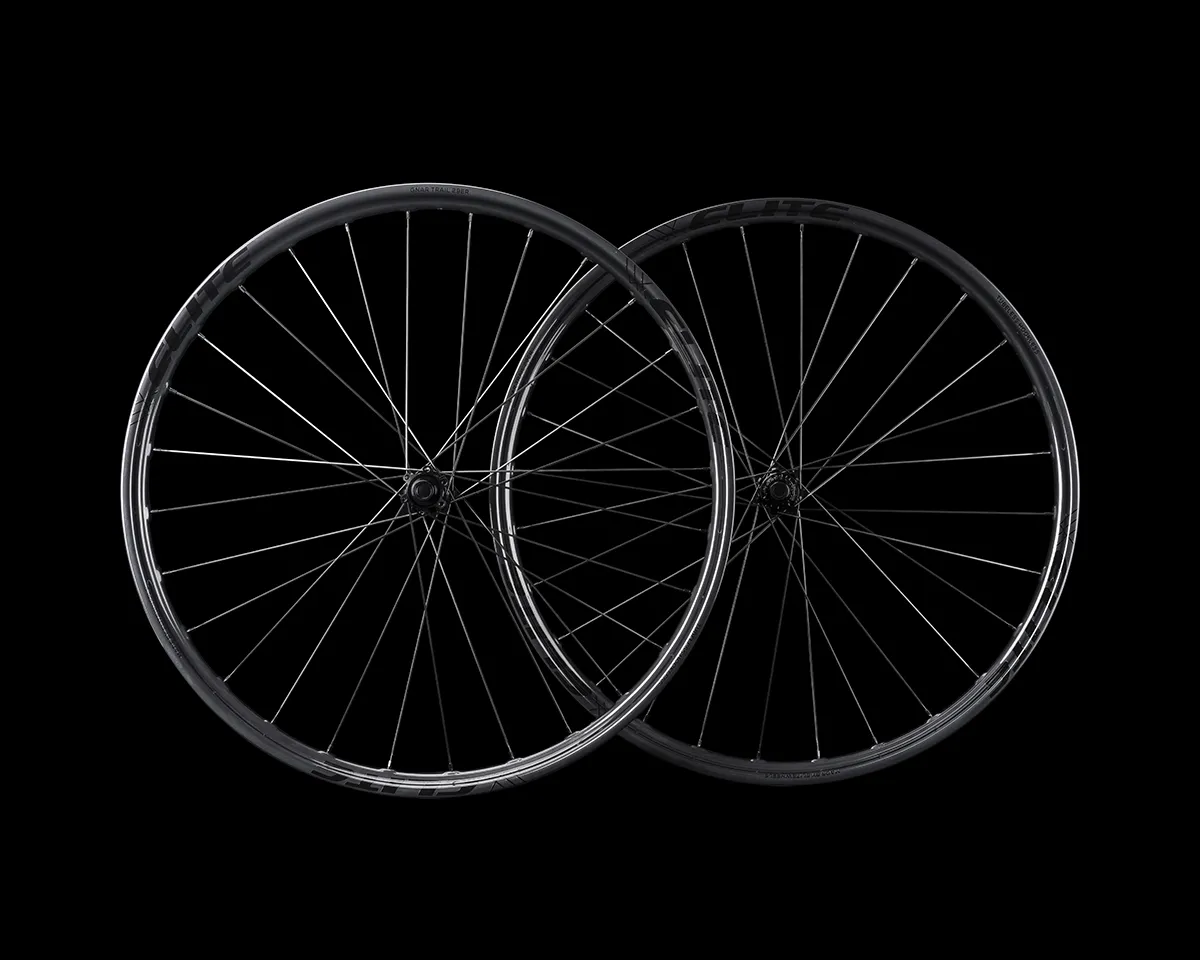

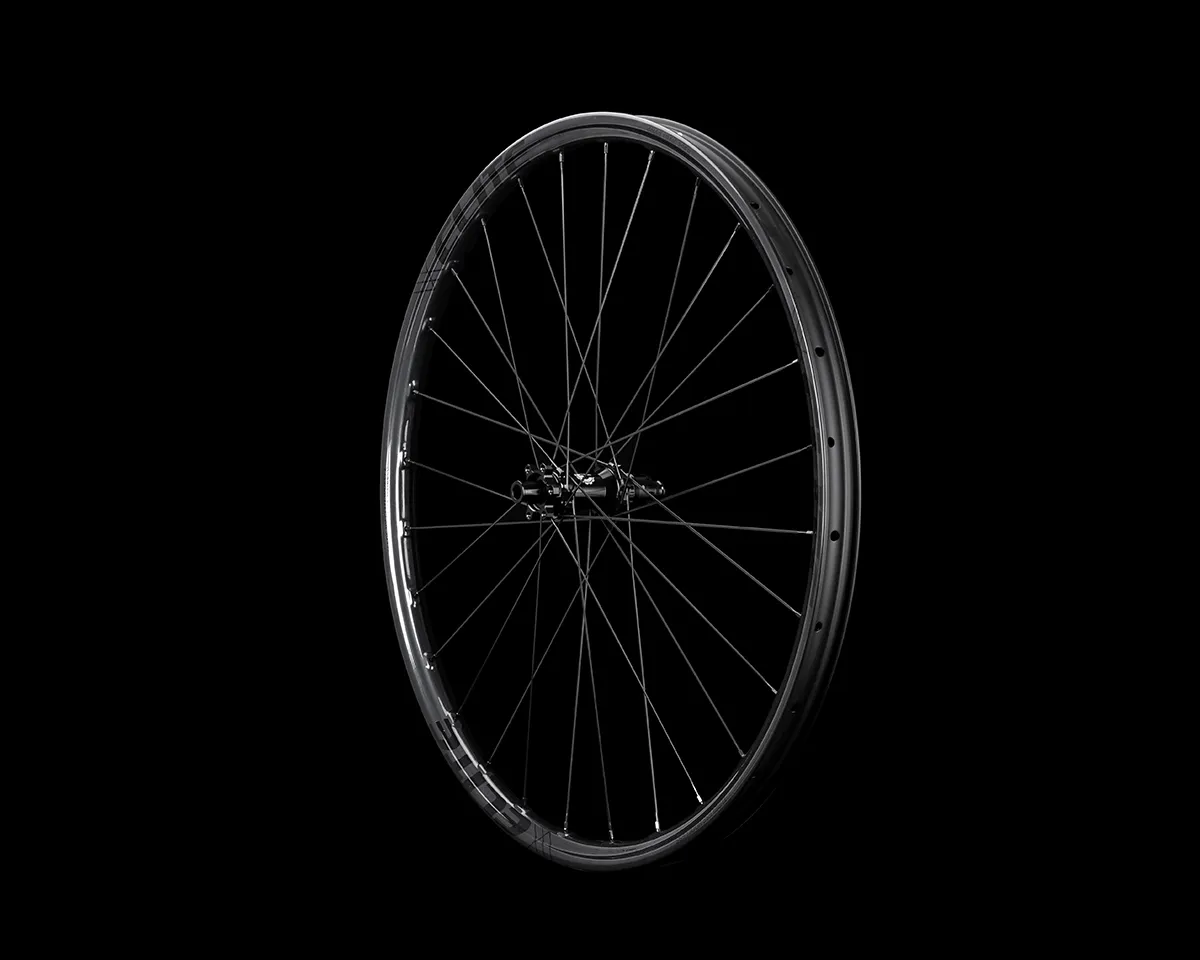

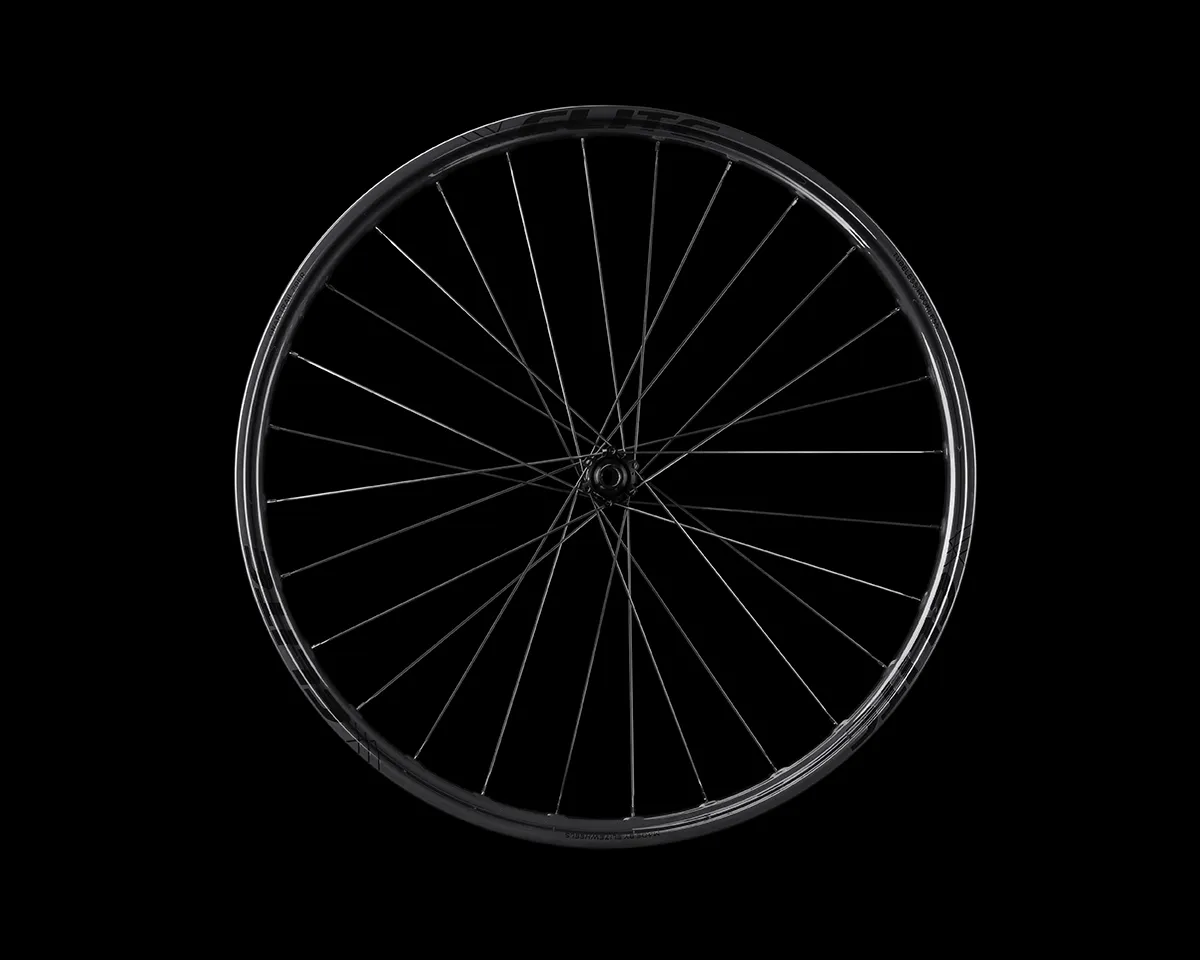

The 29er Gnar Trail SR carbon wheelset is designed for trail, AM, XC disciplines. It has a modern rim shape featuring an asymmetrical profile with a 30mm internal width. This version is paired with Elitewheels’ tried and tested Pro star ratchet hubs. The 29er Gnar Trail can stand even the toughest riding conditions.
*Please kind note that riding that goes beyond the scope intended for this wheelset will void its warranty.
*This version of the 29er Gnar Trail has not been designed for eMTB riding.
*Availability Status:
1) Black decals, usually shipped in 7-10 days.;
2) White decals on backorder, usually shipped in 30-45 days.
Specifications
[/vc_column_text][vc_empty_space][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]| Rim | |
| Wheel Size | 29″ |
| Tire Compatibility | Tubeless |

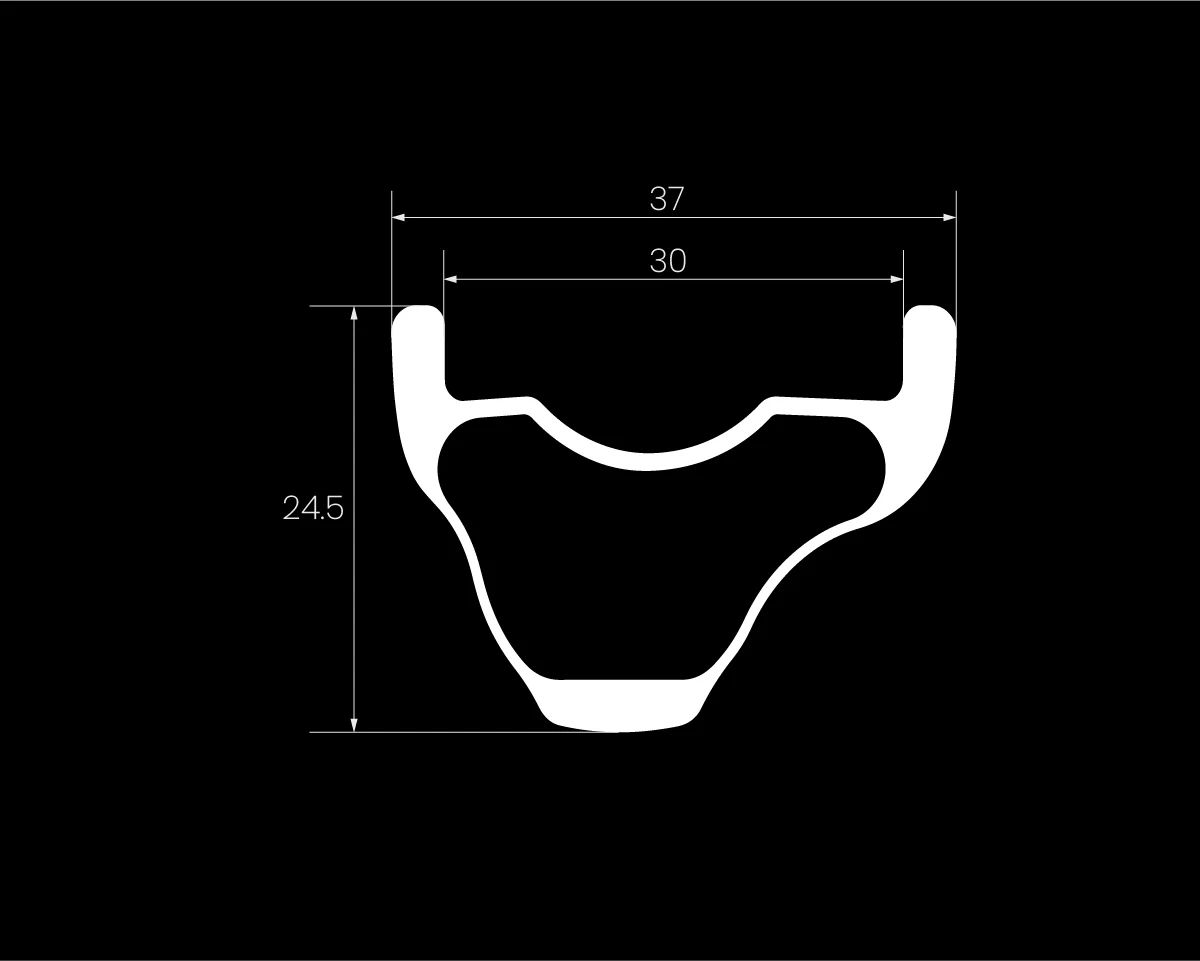

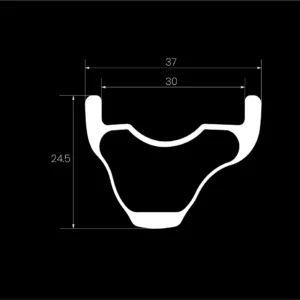

| Rim Depth | 24.5mm |
| Inner Width | 30mm |
| Outer Width | 37mm |
| Rim Profile | Asymmetric |
| Offset | 3.5mm |
| Bead Type | Hookless |
| Rim Finish | Glossy Black |
| Other | |
| Assembly Method | Handbuilt |
| Max Tire Pressure | 50psi/3.4bar |
| Extras | Rim Tape(Installed), Tubeless Valves(Installed) |
| Weight (Pair) | 1510g+(See FAQ Data information) (without tubeless valves and rim tape) |
| Rider Weight Limit | 275lbs/125kg |
| Recommended Tire Sizes | 2.2″-3.1″ |
| Intended Use | Cross Country / Trail/ All Mountain |
| ERD | 590mm |
| Certification | CE Certified |
| Hub | |
| Front Hub Spacing | 15x100mm / 15x110mm |
| Rear Hub Spacing | 12x142mm / 12x148mm |
| Bearing | Please see FAQ data on the product page |
| Brake Compatibility | Disc (Center Lock/6-bolt) |
| Freehub Type | Ratchet System 36T |
| Freehub Compatibility | Shimano HG / SRAM XD / Shimano MS |
| Spoke | |
| Front Spoke Pattern | 3X/3X |
| Rear Spoke Pattern | 3X/3X |
| Spoke Count | 28F/28R |
| Spoke Type | Sapim CX-Ray |
| Nipple Type | Sapim Secure Lock |

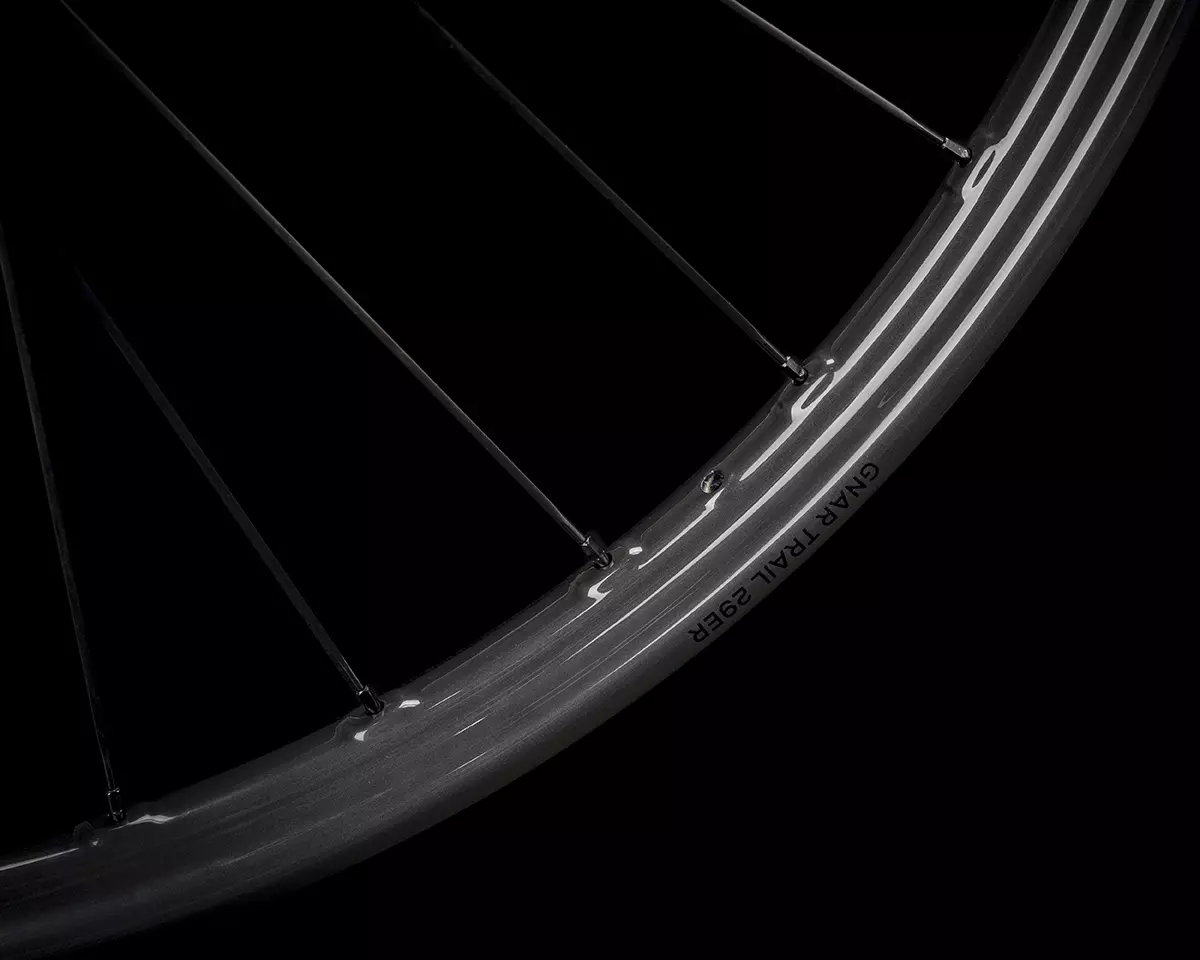

RIM
Elitewheels has left no stone unturned when designing the 29er Gnar Trail’s rim. The asymmetric rim profile of the 29er Gnar Trail leads to better stress balance, greater lateral stiffness, and strength at the spoke holes.
38 layers of carbon fiber are placed at each spoke hole to offer reinforcement. This further improves the strength and stiffness of the rim. The rim bead has been made 17% thicker to improve impact resistance.
In addition, during the rim production process, internal inflatable bladders from a special material are used to produce smoother walls, eliminating wrinkles and voids, allowing for an even stronger and more reliable rim that can be made lighter, as over-engineering is not necessary. We use genuine Toray T700 and T800 carbon fiber, which is superior to generic varieties in terms of weight and impact resistance.
The rims are designed to make fitting tubeless hookless wheels simple, requiring just a floor pump.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625730552{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”30743″ img_size=”full” onclick=”link_image” title=”29er Gnar Trail Emtb Carbon Wheelset Hub” css=”.vc_custom_1710137148683{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1745726233945{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

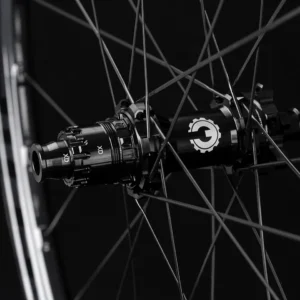

PERFORMANCE HUB
The Elitewheels Pro hubs are made of 7075 aluminum alloy and feature TPI bearings.
Both the front and rear hubs are forged and then machined using our own Fanuc CNC equipment. The rear hub features a star ratchet with 36 teeth simultaneously engaging, allowing for a high surface area to distribute power, extending the life of the freehub.
Hub servicing has been made easy due to the Pro hub’s minimalistic design and no need for special tools.
DT Swiss hubs are also available.
Discover the Hub Sound Here[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625761971{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”14349″ img_size=”full” onclick=”link_image” title=”29er Gnar Trail Emtb Carbon Wheelset Spokes” css=”.vc_custom_1677228622494{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1710135660891{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]
SPOKES
Sapim CX-Ray spokes come standard. We take precautions to ensure that spoke windup is minimized, so wheels don’t go out of true. After the initial truing, the wheel is stress relieved. This process is repeated again. The wheels are stress relieved a total of 16 times. We see this as an essential quality control standard. As a result, our wheels are guaranteed to stay within 0.2mm of true.
The 3.5mm spoke offset minimizes the right and left spoke tension difference. This makes for a stronger and more laterally stiff wheel, giving you more control.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_column_inner width=”1/6″][/vc_column_inner][vc_row css=”.vc_custom_1698029028762{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner css=”.vc_custom_1698029076216{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/4″ css=”.vc_custom_1698029620783{padding-right: 1% !important;}”][vc_single_image image=”9224″ img_size=”full” onclick=”custom_link” link=”https://www.elite-wheels.com//accessories/”][/vc_column_inner][vc_column_inner width=”1/4″ css=”.vc_custom_1698029630174{padding-right: 1% !important;}”][vc_single_image image=”9216″ img_size=”full” onclick=”custom_link” link=”https://www.elite-wheels.com//product/extra-freehub-road/”][vc_column_text]
Extra MTB Freehub
$45.00
Extra Spokes
$1.00 – $5.00
Upgrade Hubs
$260.00 – $400.00
| Axle | Boost (F.15*110 R.12*148), TA (F.15*100 R.12*142), QR (F.5*100 R.5*135) |
|---|---|
| Freehub | Shimano HG, SRAM XD, Shimano MS |
| Brake | Center Lock, 6 Bolt |
| Decal | Silver, Black |
